Technology

Our CNC Machines

Materials

We manufacture precision engineered CNC components in a range of materials including ABS, acetal, aluminium, aluminium alloy, brass, copper, mild steel, nickel alloy, nylon, plastic, polypropylene, stainless steel and steel alloy.

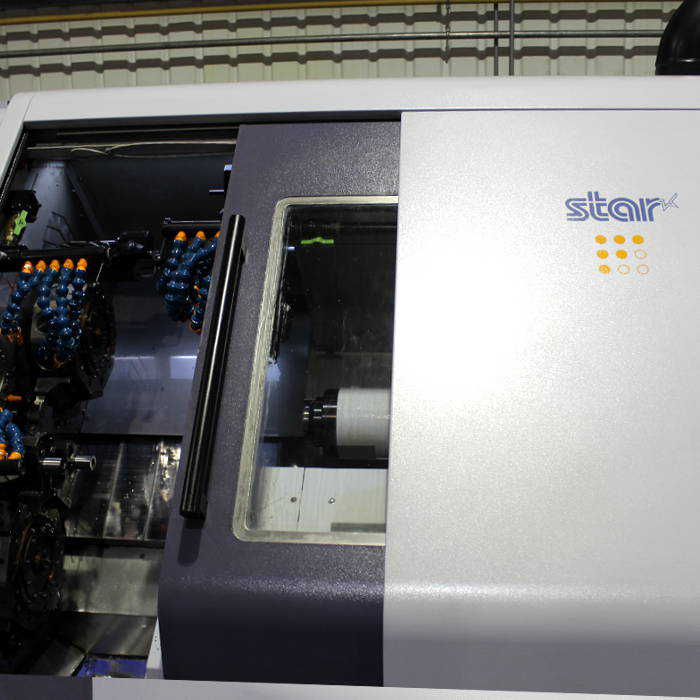

Star Sliding Head

ST-38

Star GB

Sliding Head Lathes

  • Main Spindle Side
  • Number Of Axes: 12
  • Main Spindle (Headstock): Z1 / C1 AXIS
  • Main Spindle Turrets: X1 / Y1 / X3 / Y3 / Z3 AXIS
  • Max Machining Diameter: 38 MM / 42 MM (OPTION)
  • Headstock Stroke): 350 MM
  • Main Spindle Power: 11.0 KW
  • Main Spindle Speed: 7,000 RPM
  • Main Spindle Tooling
  • Turning Tool: 16 MM SQ + 20 MM SQ (CUT-OFF)
  • Turret Sleeve Holder Capacity: Ø 22 MM SLEEVES (ER16) + Ø 32 MM SLEEVES (ER20)
  • Max Driven Tool (Pdt) Power: 4.0 KW
  • Max (Pdt) Speed: 5,700 RPM
  • Sub Spindle Side
  • Sub Spindle: X2 / Y2 / Z2 / C2 / YA2 AXIS
  • Max. Chucking Diameter: 38 MM / 42 MM (OPTION)
  • Sub Spindle Power: 7.5 KW
  • Sub Spindle Speed: 7,000 RPM
  • Sub Spindle Tooling
  • Turning Tool: 16 MM SQ
  • Turret Sleeve Holder Capacity: Ø 22 MM SLEEVES (ER16) + Ø 32 MM SLEEVES (ER20)
  • Max Driven Tool (Pdt) Power: 4.0 KW
  • Max Spindle (Pdt) Speed: 5,700 RPM

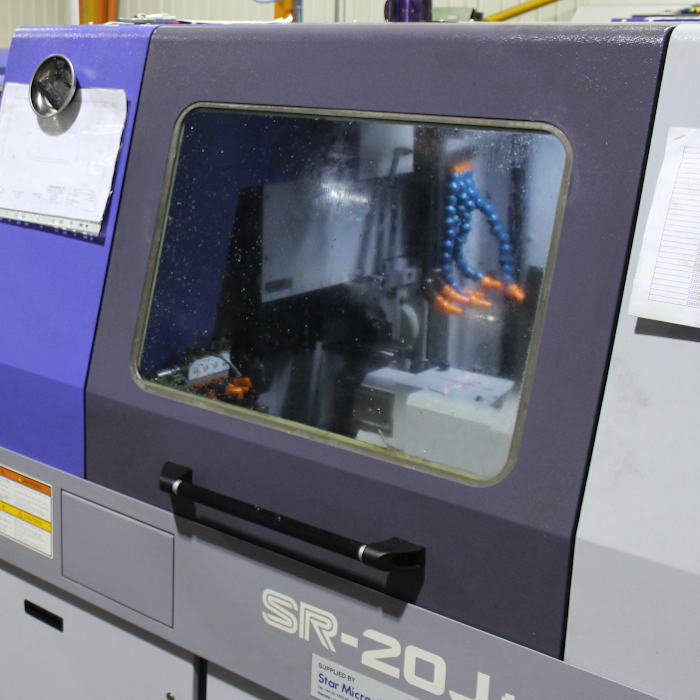

Star Sliding Head

SR-20JII

Star GB

Sliding Head Lathes

  • Main Spindle Side
  • Number Of Axes: 7
  • Main Spindle (Headstock): Z1 / C1 AXIS
  • Tool Post: X1 / Y1 AXIS
  • Max. Machining Diameter: 20 MM / 22.2 MM (OPTION)
  • Headstock Stroke (Swiss Type / Ngb Mode): 205 MM
  • Main Spindle Power: 3.7 KW
  • Main Spindle Speed: 10,000 RPM
  • Main Spindle Tooling
  • Turning Tool: 6 TOOLS @ 12 MM SQ
  • Drilling Arm Sleeve Holder Capacity: 5 X Ø 22 MM SLEEVES (ER16)
  • Power Driven Tool (Pdt) Positions: 3 + 2 MODULAR STATIONS
  • Max (Pdt) Speed: 8,000 RPM
  • Sub Spindle Side
  • Sub Spindle: X2 / Z2 / C2 AXIS
  • Max. Chucking Diameter: 20 MM / 22.2 MM (OPTION)
  • Sub Spindle Power: 3.7 KW
  • Sub Spindle Speed: 10,000 RPM
  • Sub Spindle Tooling
  • Back-Working Platen Positions: 4
  • Max Drill Speed Capacity: ER16
  • Power Driven Tool (Pdt) Positions: 4 (ER16)
  • Max (Pdt) Speed: 8,000 RPM

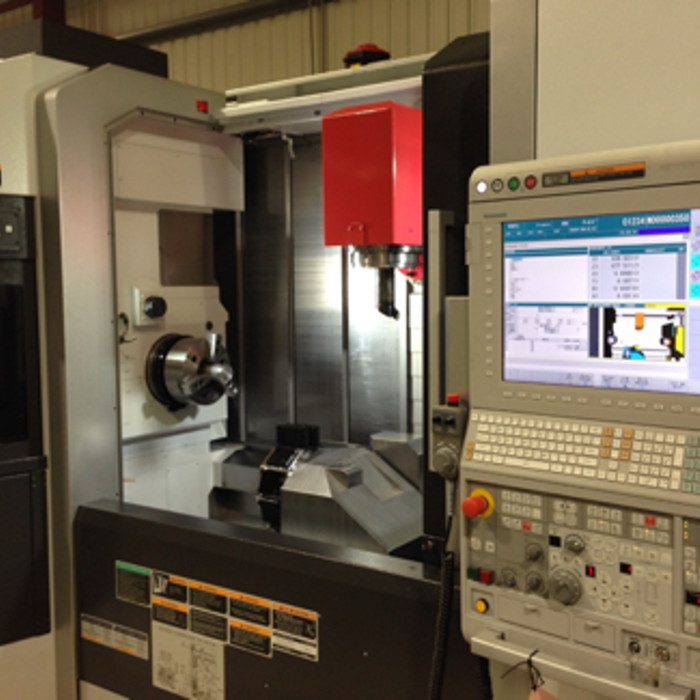

DMG MORI NTX2000

NTX2000

DMG Mori

Turn & Mill

  • Capacity
  • Max. turning diameter mm φ 610
  • Max. turning length mm 1,540
  • Bar work capacity mm φ 80
  • Travel
  • X-axis mm 495 (470+25)
  • Y-axis mm ±125
  • Z-axis mm 1,560+215 *1
  • B-axis ° ±120
  • Spindle 1 / 2
  • Max. spindle speed rpm 5,000
  • Tool spindle (Turret 1)
  • Tool storage capacity tool 76
  • Max. Tool spindle speed rpm 12,000
  • Turret 2
  • Number of tool stations tool 10
  • Max. tool spindle speed rpm 10,000

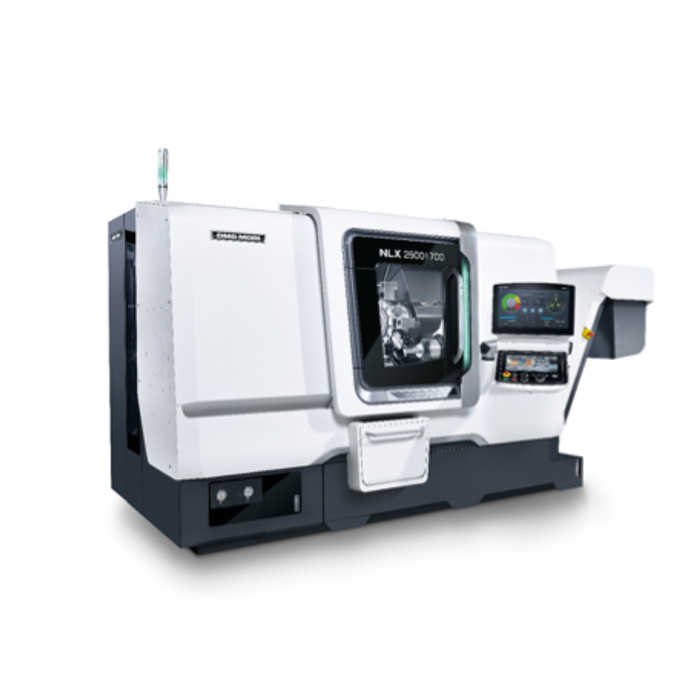

DMG MORI NLX2500/700 SY

NLX2500/700 SY

DMG Mori

Turning Center / Lathe

  • Max. turning diameter mm 278
  • Max. turning length mm 705
  • Bar work capacity mm 80
  • Travel
  • X-axis mm 260
  • Y-axis mm ±50
  • Z-axis mm 795
  • Main spindle
  • Max. spindle speed rpm 4,000
  • Turret
  • Number of tool stations 20
  • Max. rotary tool spindle speed rpm 10,000

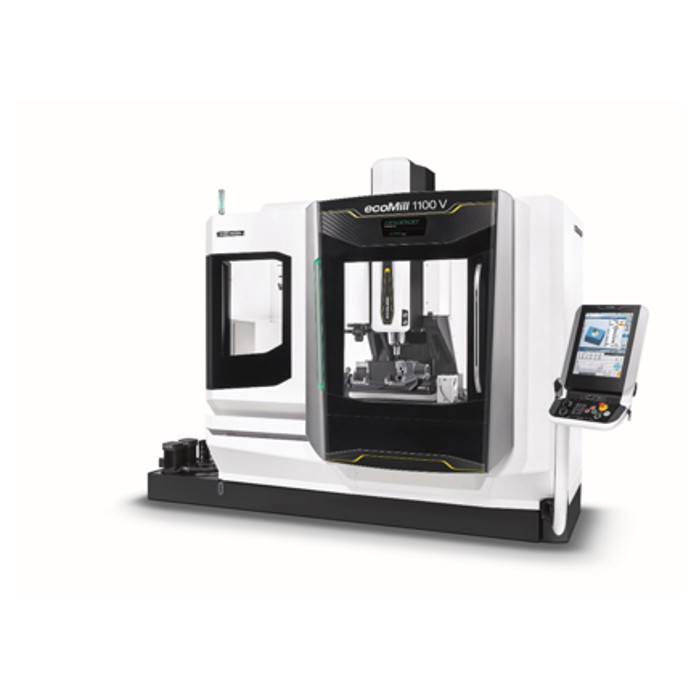

DMG MORI - ECOMILL 1100

ECOMILL 1100

DMG Mori

Vertical Milling

  • Work area
  • Traverse X- / Y- / Z-axis - 1,100 / 560 / 510 mm
  • Rapid traverse X / Y / Z - 36 / 36 / 30 mm
  • Spindle
  • Maximum speed 12000 RPM
  • Number of tools 30

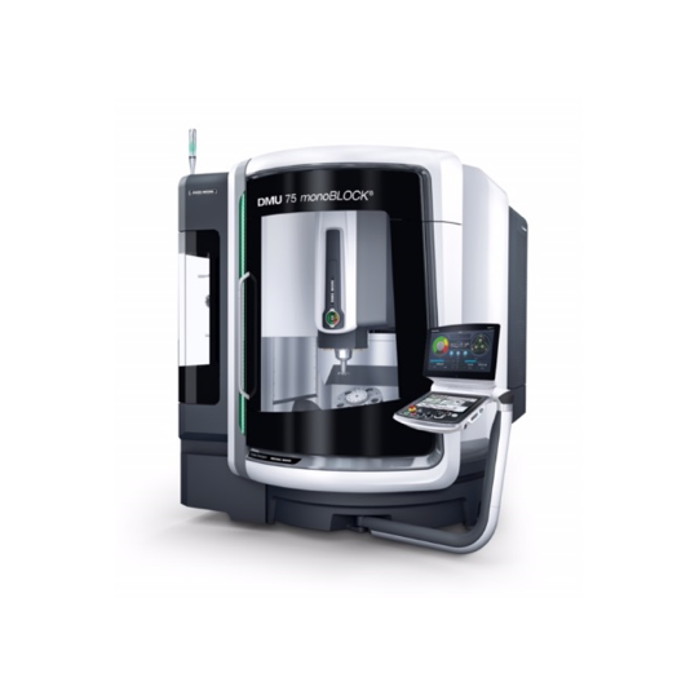

DMG MORI – DMU 75 monoBLOCK 5-axis Simultaneous Milling

DMU 75 monoBLOCK

DMG Mori

5-axis Simultaneous Milling

  • Work area
  • X / Y / Z-axis - 750 / 650 / 560 mm
  • Pallet / Table ø 650 in 800 × 650 mm
  • Max. load 600 kg
  • Max. workpiece dimensions ø 840 mm
  • Max. workpiece height 500 mm
  • Spindle
  • Spindle speed 20000 rpm
  • Tool changer
  • Tool magazine 60 Diameter (free neighbouring pockets) 160 mm
  • Length 315 mm
  • Weight 8 kg
  • Chip-to-chip time 4.9 Sec.
  • Feed rate 40000 mm/min
  • Rapid traverse speed 40 m/min
  • Acceleration 6 m/s

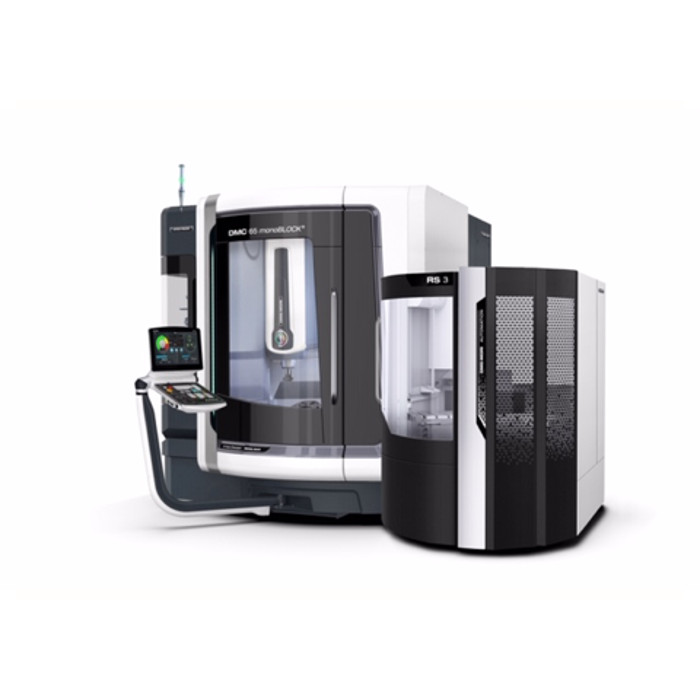

DMG-MORI-DMC-65-RPS3–Pallet-Loader

DMC 65 FD monoBLOCK

DMG Mori

5-axis Simultaneous Milling / Turning

RPS3 – Pallet Loader

  • Work area
  • X / Y / Z-axis - 735 / 650 / 560 mm
  • Pallet / Table ø 650 in 800 × 650 mm
  • Max. load 600 kg
  • Spindle
  • Spindle speed 20000 rpm
  • Turning
  • Table speed 1000 rpm
  • Workpiece ø 650mm
  • Tool changer
  • Tool magazine 60 Diameter (free neighbouring pockets) 160 mm
  • Length 315 mm
  • Weight 8 kg
  • Chip-to-chip time 4.9 Sec.
  • Feed rate 40000 mm/min
  • Rapid traverse speed 40 m/min
  • Acceleration 6 m/s

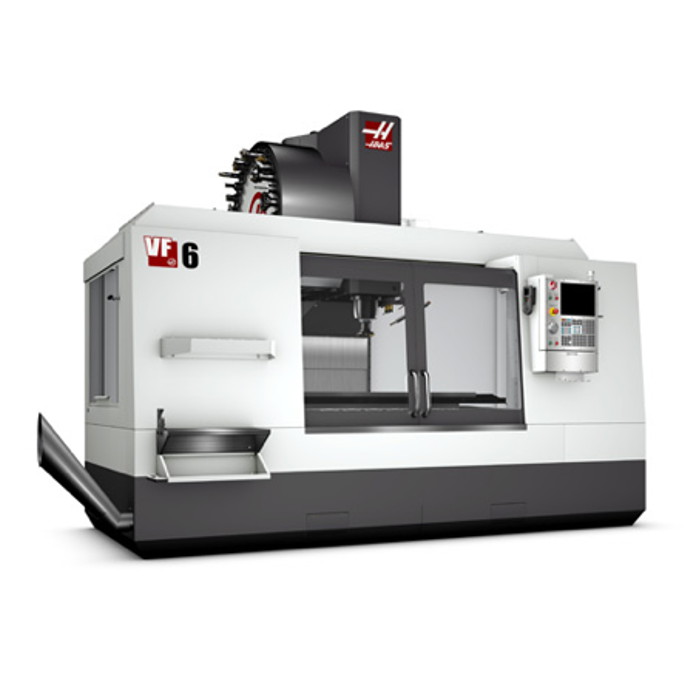

British CNC

VF6

HAAS

  • X Axis 1626 mm
  • Y Axis 813 mm
  • Z Axis 762 mm
  • Spindle Nose to Table (~ max) 889 mm
  • Spindle Nose to Table (~ min) 127 mm
  • Max Weight on Table (evenly distributed) 1814 kg
  • Spindle
  • Max Speed 7500 rpm Max
  • Torque 460 Nm @ 700 rpm
  • Federates
  • Rapids  15.2 m/min
  • Tool Changer
  • Capacity 30+1
  • Max Tool Diameter (adjacent empty) 254 mm
  • Max Tool Diameter (full) 102 mm
  • Max Tool Length (from gage line) 406 mm
  • Max Tool Weight 13.6 kg

Mill-Turn

SolidCAM

Multi-turret and multi-spindle operations, with full turret synchronization. Handles tail stocks, steady rest, mutiple spindles, rotary and linear turrets, along with multiple rotary and linear axes.

PowerMill

Autodesk

5-axis CAM software provides expert CNC programming strategies for complex 3- and 5-axis subtractive, high-rate additive and hybrid manufacturing.

CMM

Tesa

Highly capable and accurate CMM technology to inspect a variety of features on complex parts.
